Mandrels

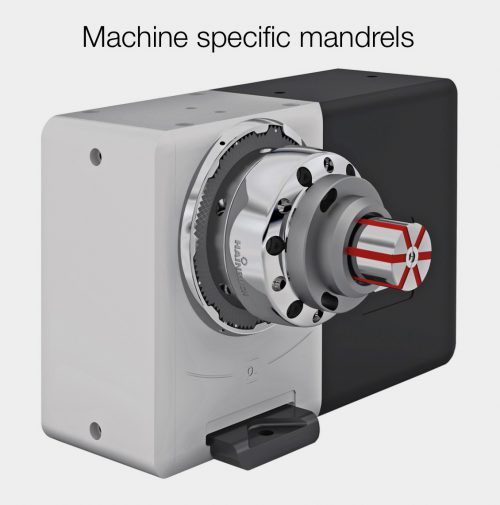

Fit on most of the machines
A separate threaded adapter provides the connection to the machine drawtube
Manufacture adapter yourself or leave it to us

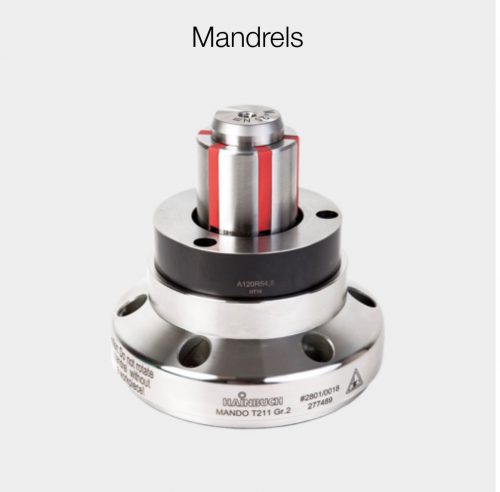

MANDO T211

Mandrel MANDO

Efficient and economical
-Extremely high clamping force even at the smallest clamping Ø
-Clamping range Ø 8 – 200 mm
-Large clamping range and vibration dampening due to vulcanized clamping elements
-Standard segmented clamping bushings and workpiece end-stops for machining to size available

T211
Mandrel pull-back / with draw bolt
Advantages
-Workpiece stabilization through axial draw force applied against the workpiece end-stop
-Less expensive segmented clamping bushings and end-stops compared to MANDO T212



MANDO T212
Mandrel MANDO
Efficient and economical
-Extremely high clamping force even at the smallest clamping Ø
-Clamping range Ø 8 – 200 mm
-Large clamping range and vibration dampening due to vulcanized clamping elements
-Standard segmented clamping bushings and workpiece end-stops for machining to size available

T212
Mandrel pull-back / without draw bolt for blind bores
Advantages
-Workpiece stabilization through axial draw force applied against the workpiece end-stop
-Clamping without draw bolt, consequently ideal for blind bores



MANDO T812
Mandrel MANDO
Efficient and economical
-Extremely high clamping force even at the smallest clamping Ø
-Clamping range Ø 8 – 200 mm
-Large clamping range and vibration dampening due to vulcanized clamping elements
-Standard segmented clamping bushings and workpiece end-stops for machining to size available

T812
Mandrel deadlength / without draw bolt for the picking with the main spindle

Advantages
-Radial clamping, no pull-back against workpiece end-stop – ideal for pick-off from the main spindle
-Clamping without draw bolt, consequently ideal for blind bores
